Sizes ranging from 1 1/2" to 6" with bottom and back mounts available.  For detailed product models and specs, please refer to Online Catalogues or Product Gallery for more info.  Please refer to the product images below for a brief image of some of our products manufactured.

General Specs:
Dial Size: 1 1/2" to 6"
Bourdon/Coiled Tube: Brass Material.  0-700/0-1000 bar used with Germany-Imported SS316 Material.
Movement: Germany-Imported SS430 Material.
Internals & Socket: Brass.
Accuracy: ±2% on 1 1/2" and 2", ±1.5% on 2 1/2", 4", ±1% on 6".
Liquid-Filled: Imported 99.95% Purity Glycerin, or Optional Silicone.
Mounting: Lower Mount (Bottom), Back Mount, Back Mount with Flange, Back Mount with U-Bracket.
Pressure Ranges: Vacuum, Compound, 0-1000 bar.
Bezel Type: Standard Crimped Bezel, or Optional Bayonet Ring.
Dial Scales: Standard Dual Scale with kg/cm²/psi, psi/bar, and etc.


1 1/2" Gauges to follow below:

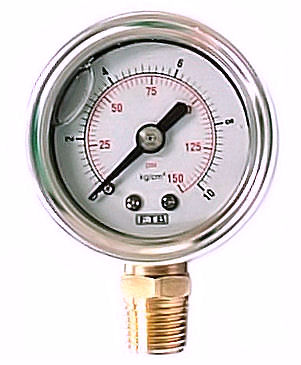

321.11 Lower Mount, Brass Internals                         321.51 Center Back Mount, Brass


321.91 Center Back Mount w/ U-Bracket


2" Gauges to follow below:

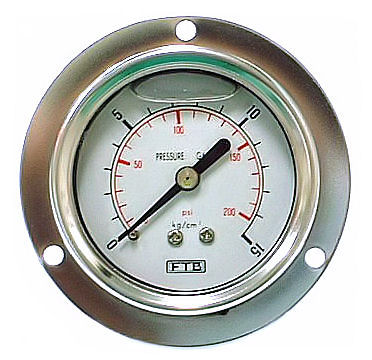

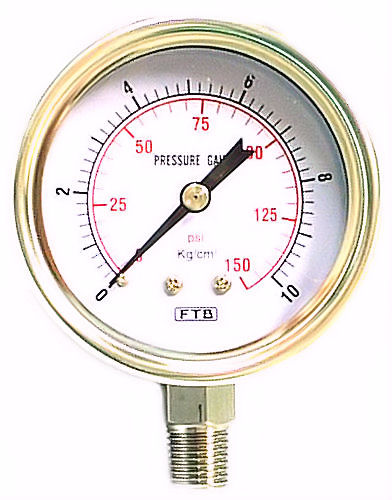

322.13 Lower Mount Full SS Constructed                  322.71 Center Back Mount w/Front Flange

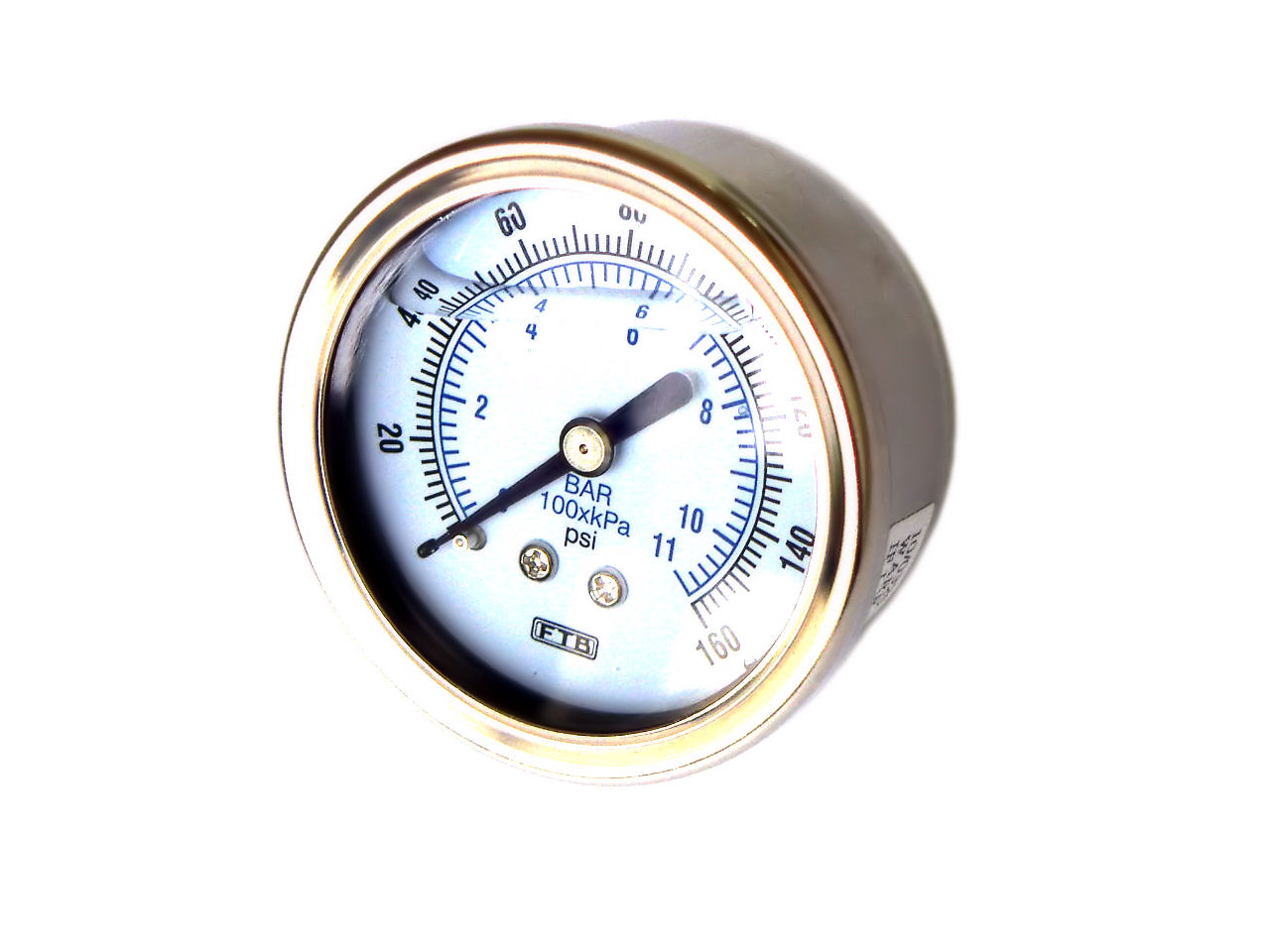

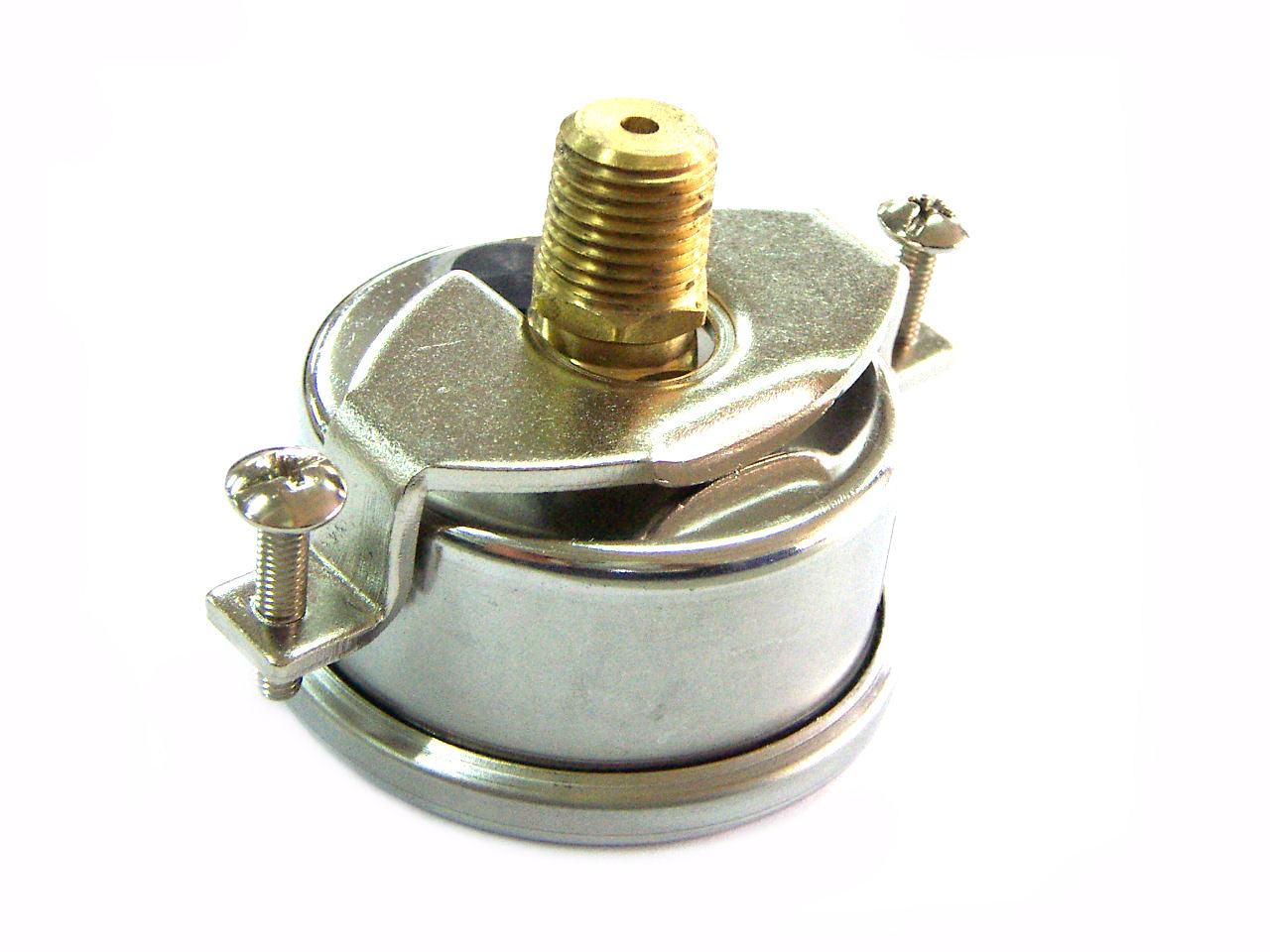

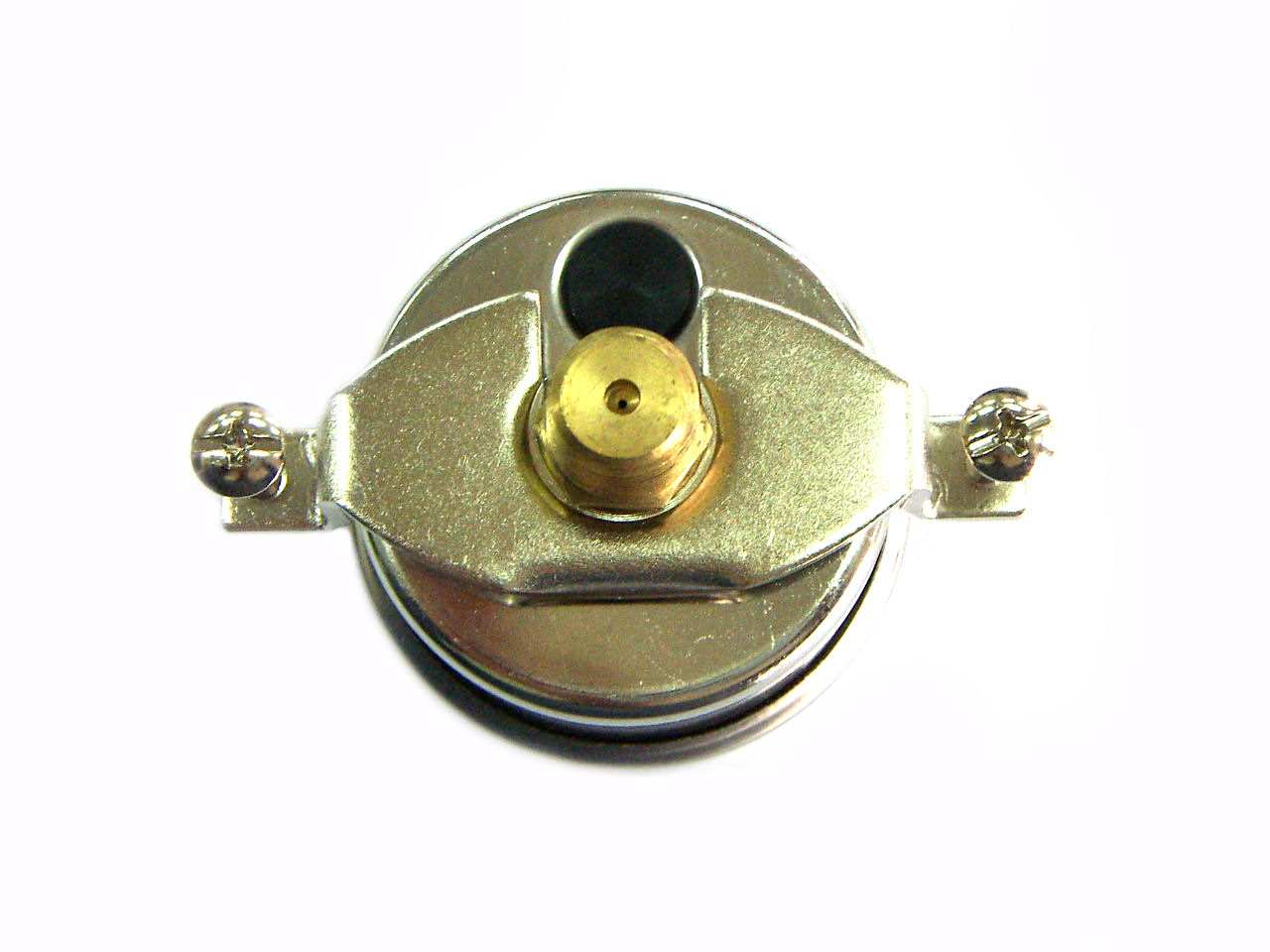

322.51.22 Center Back Mount                                  322.91 CBM with U-Bracket - Back View


322.91 CBM with U-Bracket - Back View


2 1/2" Gauges to follow below:

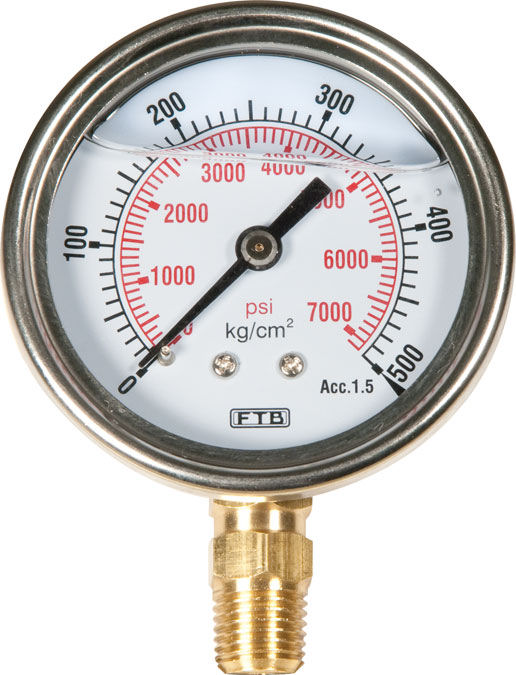

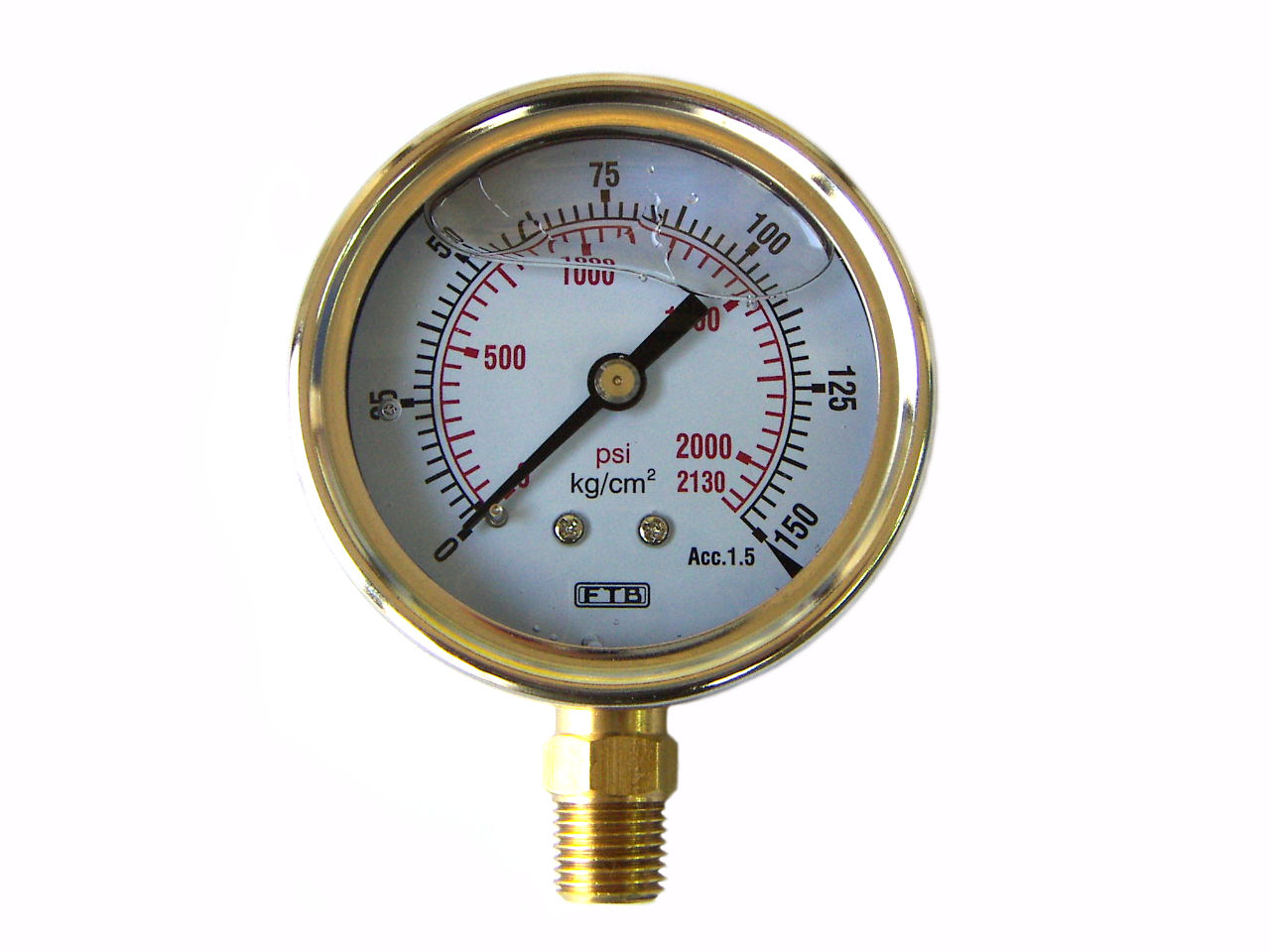

323.11 Lower Mount, Brass Internals                         323.13 Lower Mount w/Max. Pointer, All SS

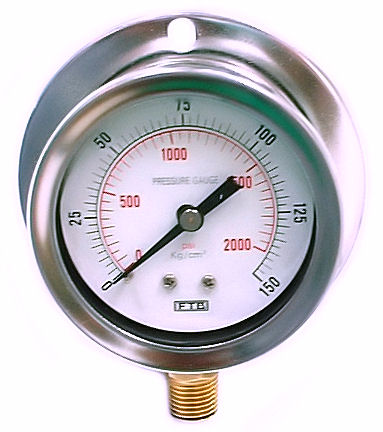

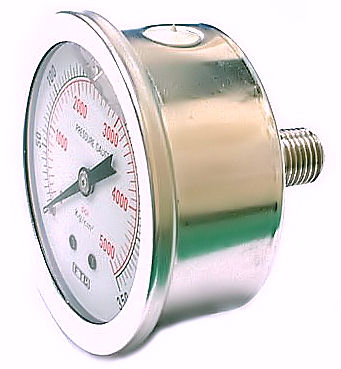

323.21 Lower Mount w/Back Flange                          323.53 Center Back Mount, All SS

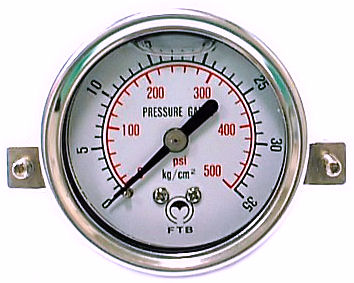

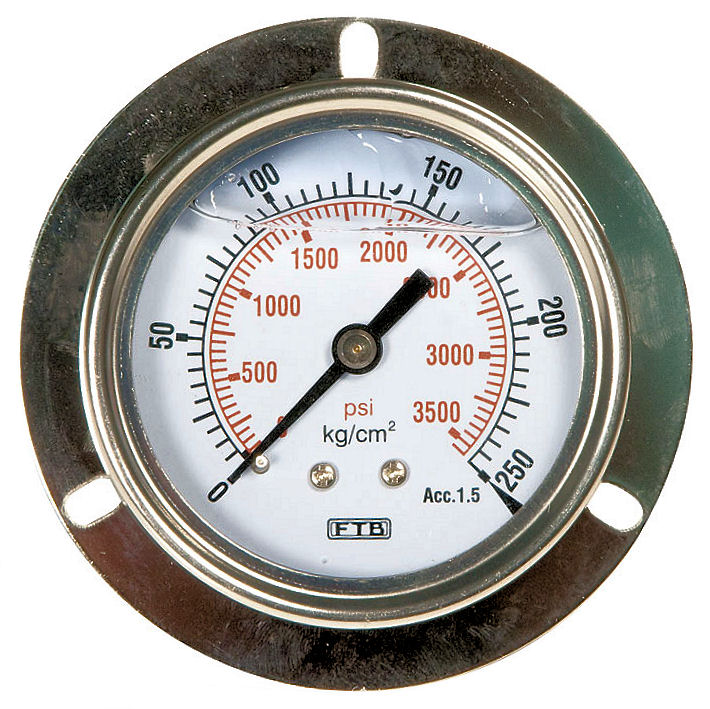

323.71 Center Back Mount w/Front Flange                323.91 Center Back Mount w/U-Bracket


4" Gauges to follow below:
325.11 Lower Mount, Brass Internals                        325.11 Lower Mount, Brass Internals

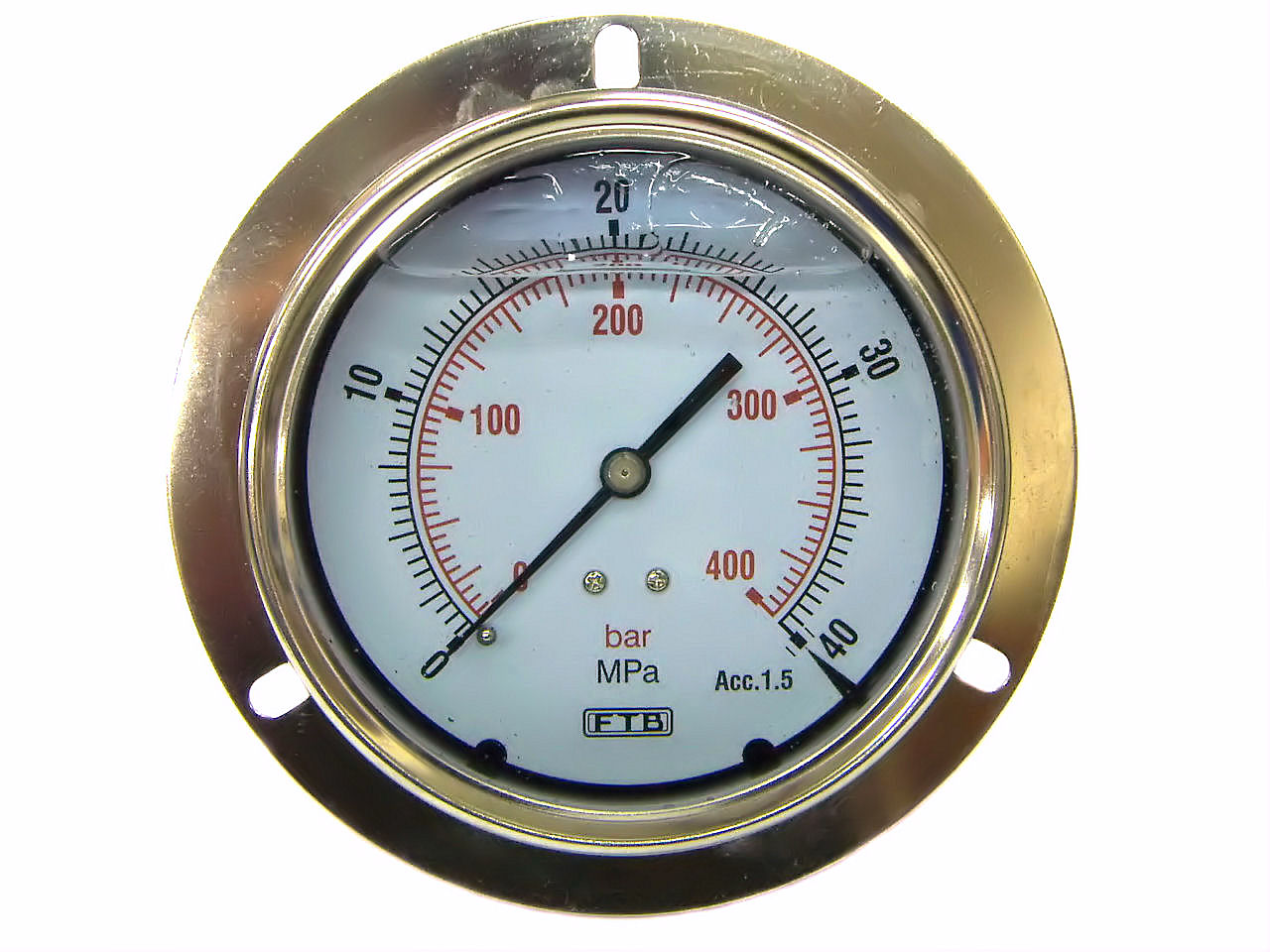

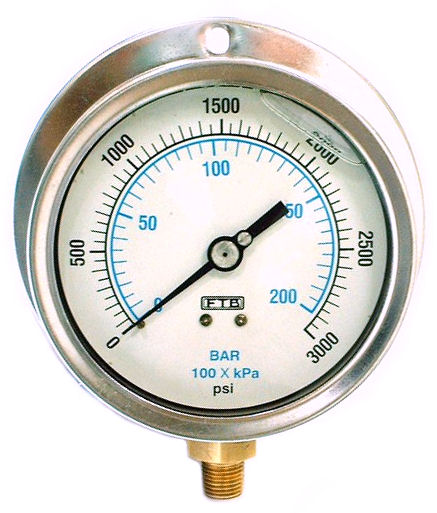

325.21 Lower Mount w/Back Flange                          325.71 Center Back Mount w/Front Flange

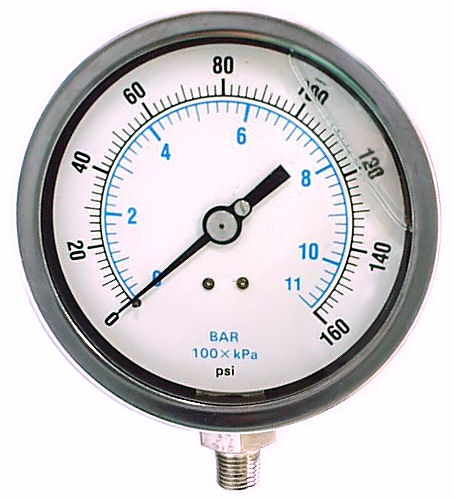

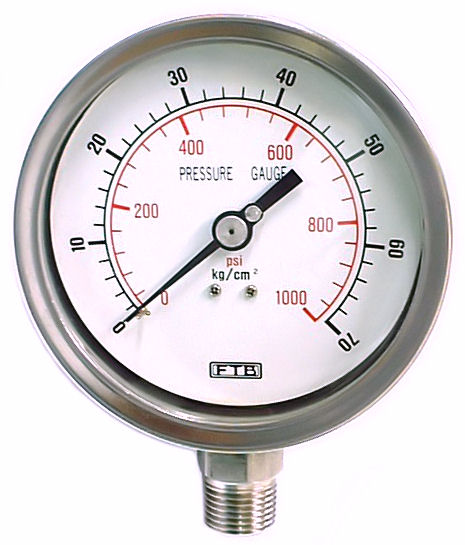

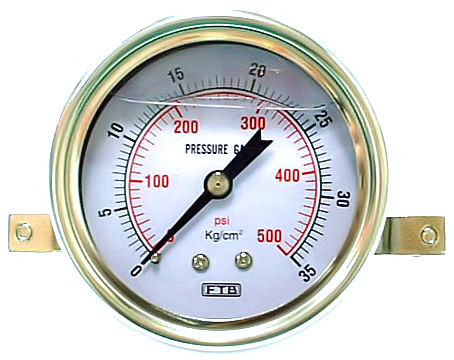

325.91 Center Back Mount w/U-Bracket                    325.13 Lower Mount, All Stainless Steel

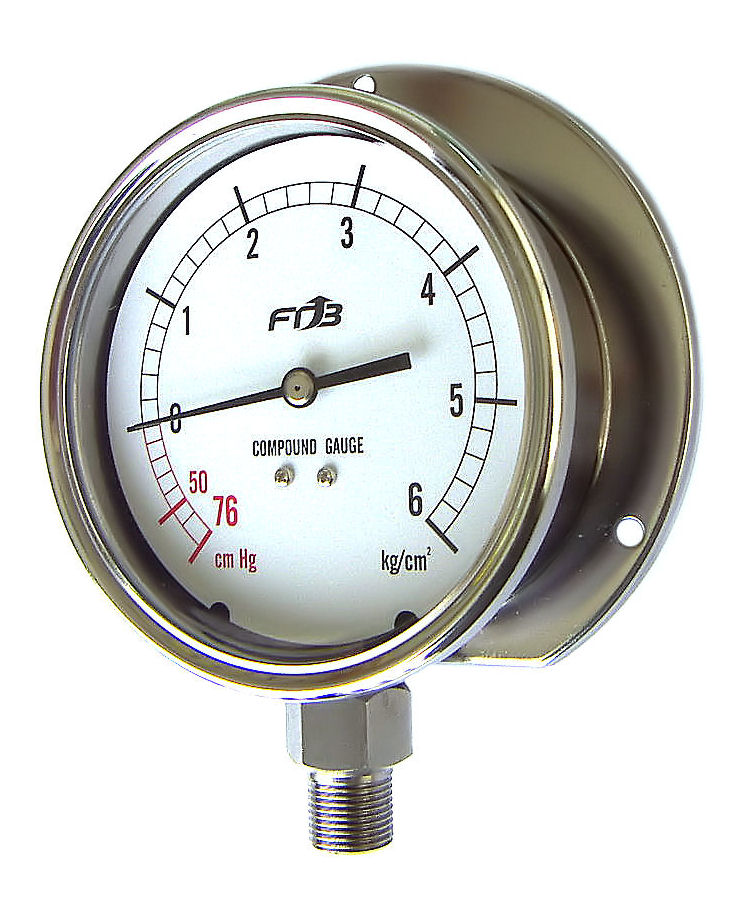

325.13 Lower Mount, All Stainless Steel                    325.23 LM with Back Flange, All Stainless Steel


6" Gauges to follow below:

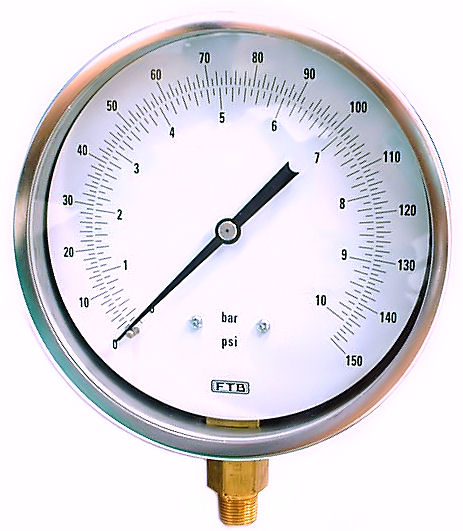

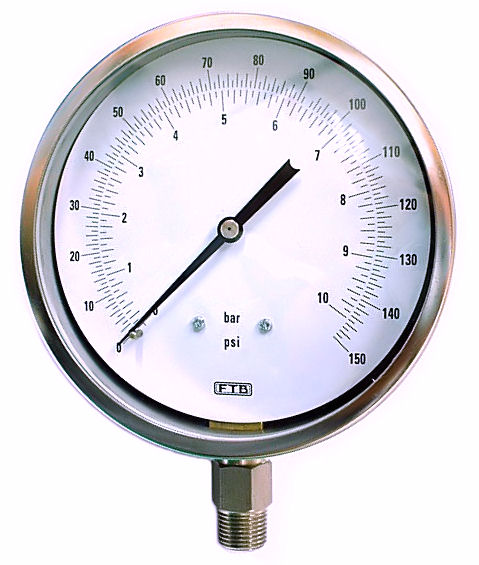

226.11 Lower Mount, Bayonet Ring                            226.13 Lower Mount, Bayonet Ring, All SS


Capsule Pressure Gauges to follow below:
4" Lower Mount, Screw-In Bezel                                 2 1/2" Lower Mount, Snap-In Lens


> View E-Catalog Online Page 1                                 > View E-Catalog Online Page 2
> E-Catalog Downloading                                            > Product Gallery

Stainless Steel 316 Ti Stem for long-lasting life span to be exposed under extreme conditions. conditions.		Important components make the accuracy accurate.
