CE Approved Economical Type Electrical Contact Pressure Gauges (Patents Pending Worldwide)
4" Economical Type Electrical Contact Pressure Gauges - The EEPG-100/63/50 Non-Contact Type Electrical Contact Pressure Gauges are manufactured under the FTB-Developed and Patent-Pending Technology for the core contact system of the gauge using the "non-contact" sensoring system as the major device to keep the switchings more smooth, accurate, quick, and thus make the life-span longer.  The major benefits and features of EEPG-100/63/50 are specified below.

Features:

• Pressure gauge with non-contact sensor works best for the applications where pressure switches are necessary.  Because of the benefits of a combination of a high quality pressure gauge with FTB Patent-Pending "non-contact" Technology, the EEPG-100/63/50 performs merely no tolerances for the pressures setup on EEPG-100/63/50.  This is because of the integration of a non-contact sensor built inside the quality FTB pressure gauge to minimize the tolerances for both devices.
• Non-Contact Sensor built inside the quality FTB pressure gauge provides a perfect system without the concerns of the contact burning phenomenon for contact type switch.
• Quick operating and releasing time to meet the requirements for quick operations from the applications such as rubber injection machines.
• Optional stainless steel AISI 316 Bourdon Tube or Movement to enrich the life-span of the EEPG-100/63/50.

Models:
EEPG-100
1) Lower Mount (LM), up to 2 contacts offered.
2) Lower Back Mount with front flange (LBM), up to 2 contacts offered.
EEPG-63
1) Lower Mount (LM), up to 2 contacts offered.
2) Center Back Mount with front flange (CBM), up to 2 contacts offered.
EEPG-50
1) Lower Mount (LM), up to 2 contacts offered.
2) Center Back Mount with front flange (CBM), up to 2 contacts offered.

Specifications:
Model: EEPG-100 (Size 4", adjustable setting ranges 0-100% full scale)
Model: EEPG-63 (Size 2 1/2", fixed setting)
Model: EEPG-50 (Size 2", fixed setting)
Mounting: Bottom, Back, Bottom with Back Flange, Back with Front Flange
Ranges: Positive, Negative (Vacuum), and Compound
Dial Sizes: 100 mm, 63 mm, 50 mm
Case: Steel with Chrome-Plated, Bayonet Ring
Lens: Acrylic
Pointer: Steel (EEPG-100), Aluminum (EEPG-63), Aluminum (EEPG-50), Black Lacquered
Tubing: Standard Brass, optional Stainless Steel AISI 316, or Phosphor Bronze
Movement: Standard Brass, optional Stainless Steel AISI 316, or Phosphor Bronze
Connection: Standard Brass or optional Stainless Steel AISI 316
Wiring: Fixed Cable Box
Contact Type: High Contact (A-NO), and Low Contact (B-NC)
Control Type: Single or Double Contact(s)
Accuracy: 1.5% F.S.
Scale: psi, bar, kPa, MPa, kg/cm2, and etc.

Technical Data:
Contact Form: SPST Form B
Operating Voltage: 240 VAC (Maximum)
Switching Power: 50 VA
Switching Current: 0.23 A DC/AC max. at 220 VAC
Carrying Current: 0.23 A DC/AC max. at 220 VAC
Operating Time: 1.0 Millisecond
Releasing Time: 0.2 Millisecond
Operating Temperature: -40 to +125 C
Storage Temperature: -50 to +155 C


EEPG-100 Lower Back Mount - Front View                EEPG-100 Lower Back Mount - Close-Up View


EEPG-100 Lower Back Mount - Side View-1              EEPG-100 Lower Back Mount - Side View-2


EEPG-100 Lower Back Mount - Back View                EEPG-100 Lower Back Mount - Front View-1


EEPG-100 Lower Mount - Front View                        EEPG-63 Center Back Mount - Side View


EEPG-63 Center Back Mount - Back View                 EEPG-63 Lower Mount - Front View

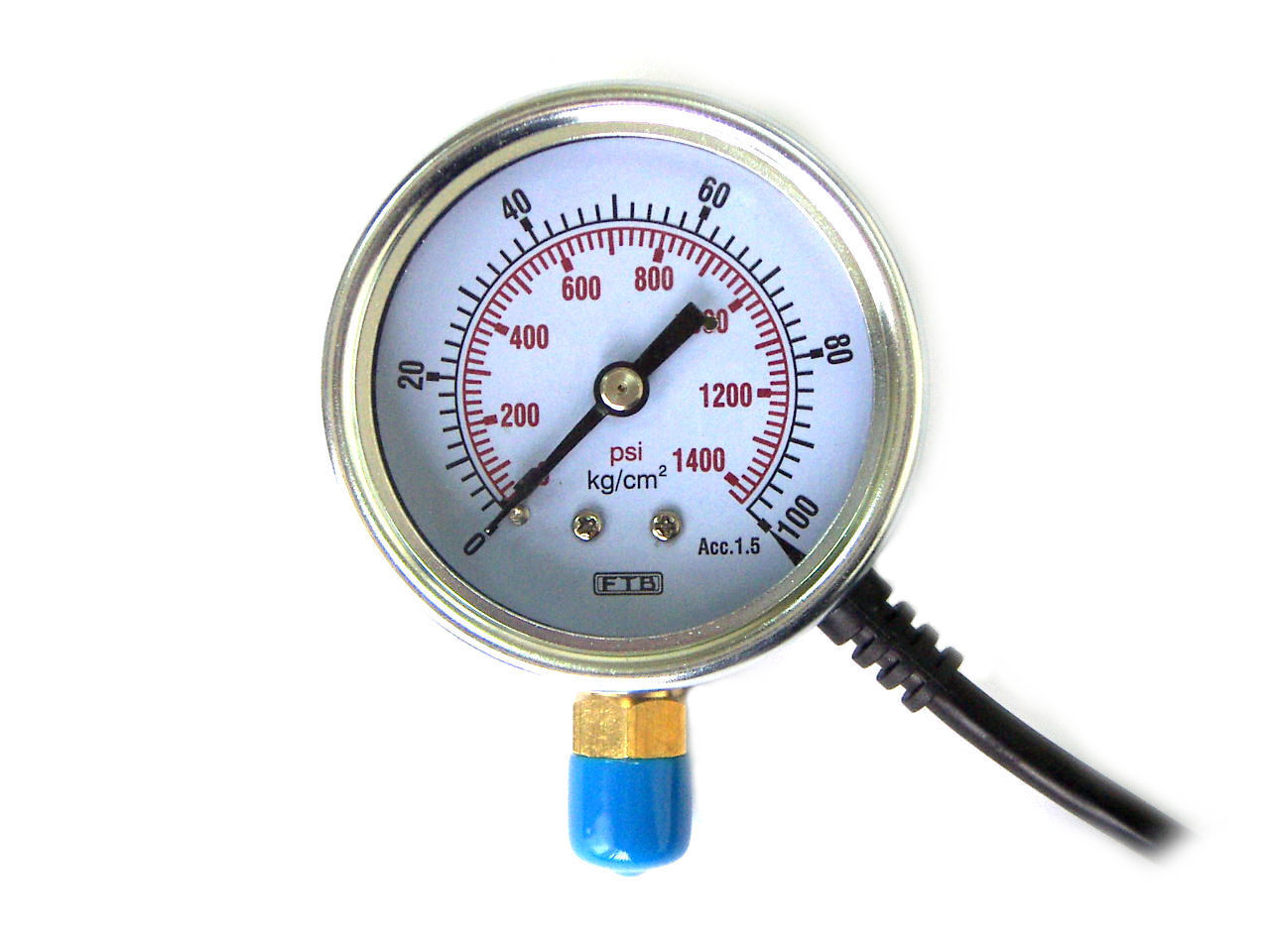

EEPG-50 Center Back Mount - Front View                 EEPG-50 Lower Mount - Front View
