ABS Case Pressure Gauges
FTB • ABS • Case • Pressure • Gauges

> larger view


ABS Gauges
ABS plastic structured case to be applied for petroleum industries and corrosive environments.  For detailed product models and specs, please refer to specs and models or Online Catalogues and Product Gallery for details of 1 1/2" and 6".  Please refer to the product images below for a brief image of some of our products manufactured.

General Specs:
Dial Size: 2" & 2 1/2"
Bourdon/Coiled Tube: Brass Material, 0-700/1000 bar with Germany-Imported SS316 Material.
Movement: Germany-Imported SS430 Material.
Internals & Socket: Brass Material.
Accuracy: ±2% on  2", ±1.5% on 2 1/2.
Liquid-Filled: Imported 99.95% Purity Glycerin, or Optional Silicone.
Mounting: Lower Mount (Bottom), Back Mount, Back Mount with Flange, Back Mount with U-Bracket.
Pressure Ranges: Vacuum, Compound, 0-1000 bar.
Bezel Type: Standard Crimped Bezel, or Optional Bayonet Ring.
Dial Scales: Standard Dual Scale with kg/cm²/psi, psi/bar, and etc.

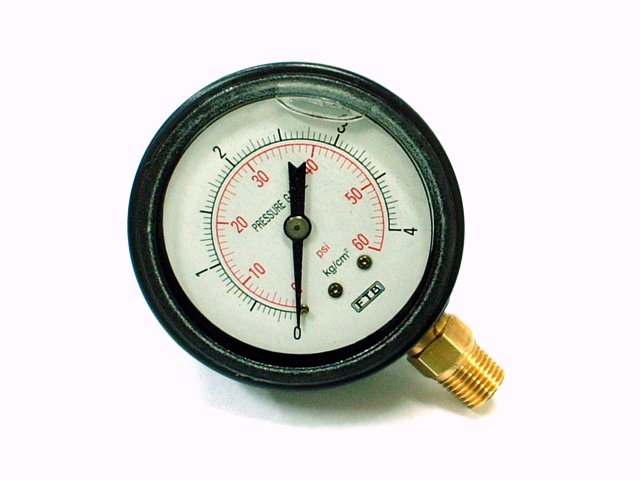

 673.01 (2.5") Lower Mount, Brass

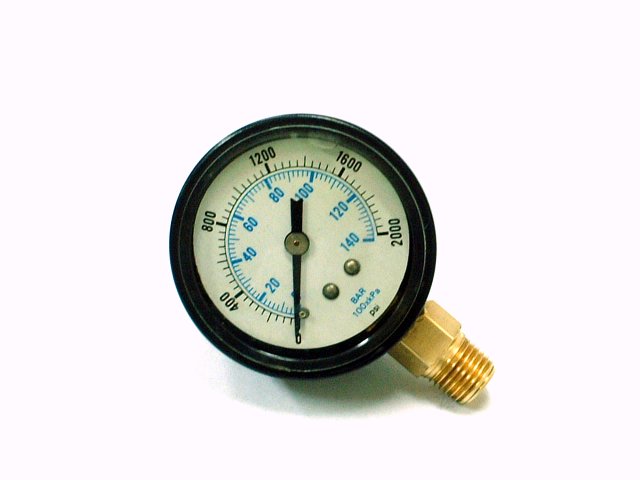

672.01 (2") Lower Mount, Brass



> View E-Catalog Online Page 1                                 > View E-Catalog Online Page 2
> E-Catalog Downloading                                            > Product Gallery

Stainless Steel 316 Ti Stem for long-lasting life span to be exposed under extreme conditions.
Important components make the accuracy accurate.
